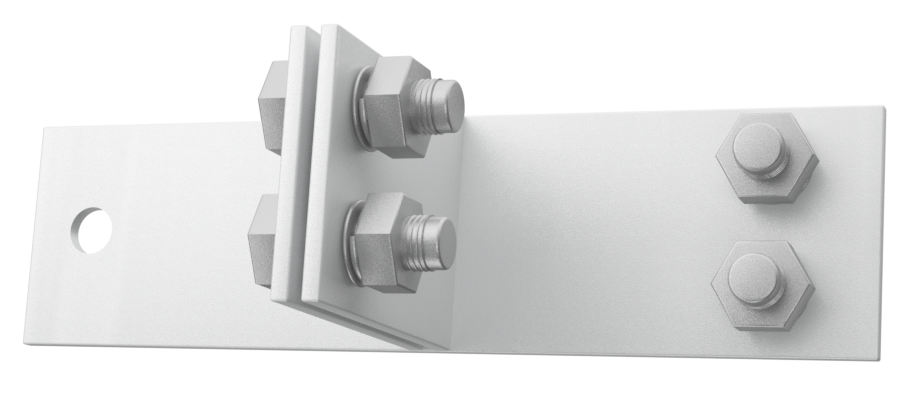

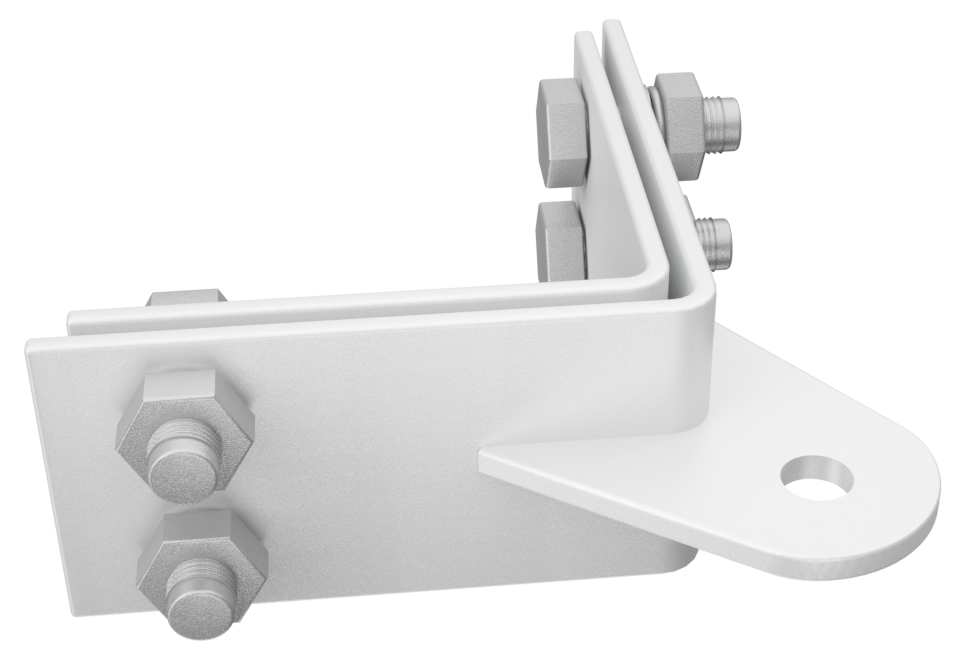

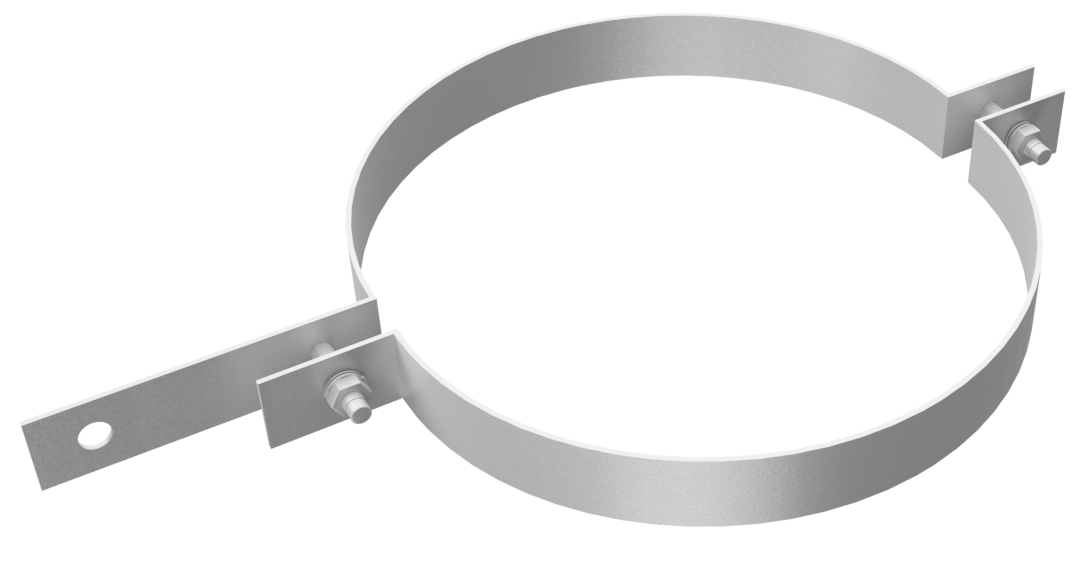

耐張夾板用于轉角塔或終端塔，為 ADSS 光纜架設提供掛點。直線夾板用于直線塔，為 ADSS 光纜架設提供掛點。抱箍用于耐張、懸垂線夾在桿上的固定 ，為 ADSS 光纜架設提供掛點。
根據線路特點，緊固夾具分桿用和塔用兩種：
????????????????????????????
| 產品名稱 | 產品規格 | 用于光纜掛點位置主材尺寸 | 材料 | 破壞載荷(kN) |
|---|---|---|---|---|
|
直線夾板 |
GZT 80/70 |
≤80mm |
鍍鋅鋼 |
70 |
|
GZT 100/70 |
81~100mm |
70 |
||
|
GZT 125/70 |
101~125mm |
70 |
||
|
GZT 145/70 |
126~145mm |
70 |
||
|
GZT 165/70 |
146~165mm |
70 |
||
|
GZT 200/70 |
166~200mm |
70 |
||
|
耐張夾板 |
GNT 100/80 |
≤80mm |
100 |
|
|
GNT 100/100 |
81~100mm |
100 |
||
|
GNT 125/100 |
101~125mm |
100 |
||
|
GNT 145/100 |
126~145mm |
100 |
||
|
GNT 165/100 |
146~165mm |
100 |
||
|
GNT 200/100 |
166~200mm |
100 |
| 產品名稱 | 產品規格 | 安裝位置直徑 | 材料 | 破壞載荷(kN) |
|---|---|---|---|---|
|
抱箍 |
BG 125/70 |
101~125mm |
鍍鋅鋼 |
70 |
|
BG 150/70 |
126~150mm |
70 |
||
|
BG 175/70 |
151~175mm |
70 |
||
|
BG 200/70 |
176~200mm |
70 |
||
|
BG 225/70 |
201~225mm |
70 |
||
|
BG 250/70 |
226~250mm |
70 |
||
|
BG 275/70 |
251~275mm |
70 |
||
|
BG 300/70 |
276~300mm |
70 |
||
|
BG 325/70 |
301~325mm |
70 |
||
|
BG 350/70 |
326~350mm |
70 |
||
|
BG 375/70 |
351~375mm |
70 |
||
|
BG 400/70 |
376~400mm |
70 |
||
|
BG 425/70 |
401~425mm |
70 |
||
|
BG 450/70 |
426~450mm |
70 |
||
|
BG 475/70 |
451~475mm |
70 |
||
|
BG 500/70 |
476~500mm |
70 |
||
|
BG 525/70 |
501~525mm |
70 |
||
|
BG 550/70 |
526~550mm |
70 |
||
|
BG 575/70 |
551~575mm |
70 |
||
|
BG 600/70 |
576~600mm |
70 |
||
|
BG 625/70 |
601~625mm |
70 |
||
|
BG 650/70 |
626~650mm |
70 |
||
|
BG 675/70 |
651~675mm |
70 |
||
|
BG 700/70 |
676~700mm |
70 |
